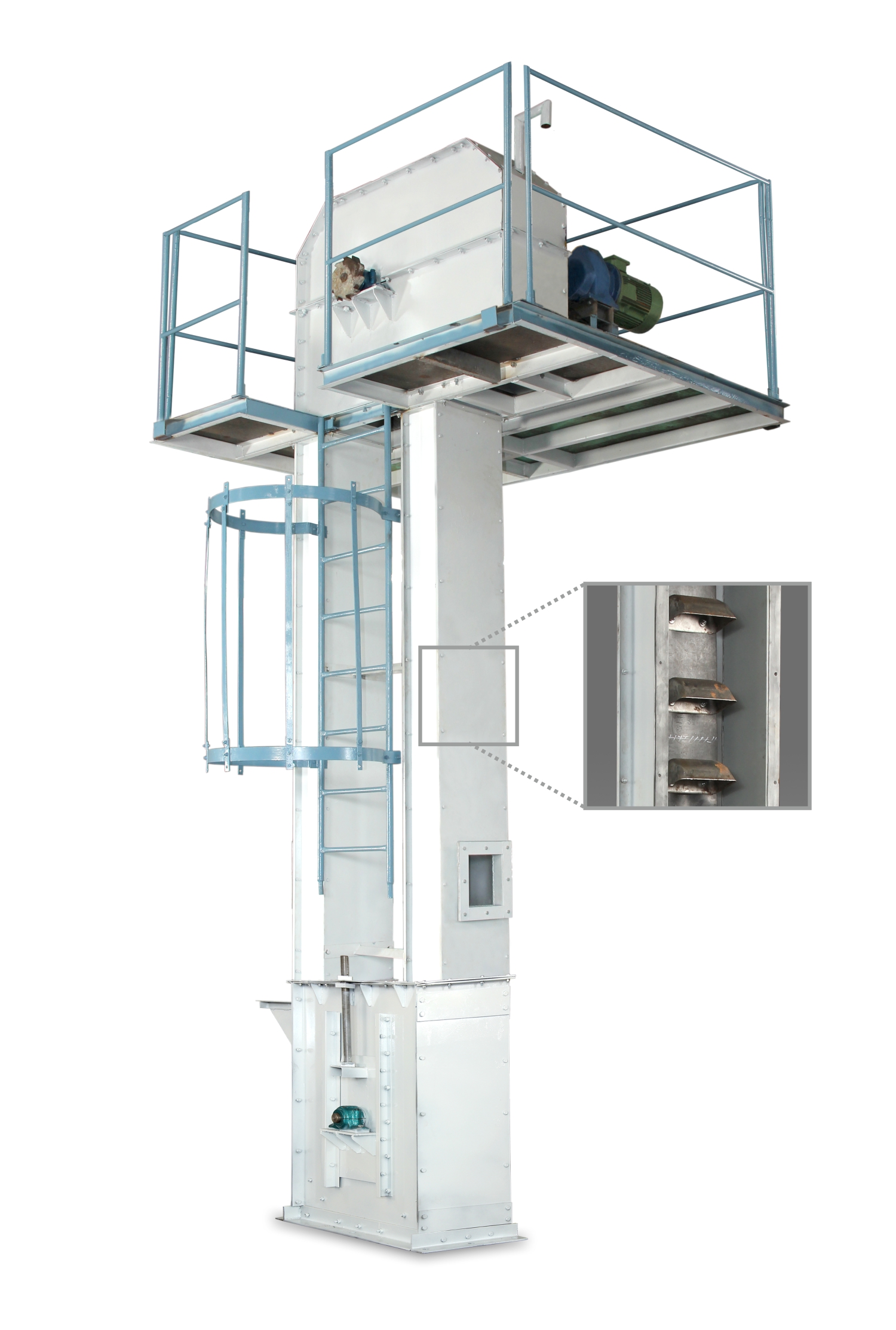

Bucket Elevator (Belt Type)

The KGSPL Bucket Elevator specially designed to suit outdoor as well as indoor installations, wide range of commodities to be handled. Highly engineered and manufactured with world class technology make our Bucket Elevators user friendly. The main features for a Bucket Elevators are as follows :

All Steel components like Top Hood, Bottom Boot, and casing made of bolted construction are cut on laser machine.
Easy to Install
Maintenance free
Zero Speed limit switch/ back stop arrangement.
Working platform at the top with drive mounting stool.
Specially designed pulleys with rubber lagging and dynamically balanced.
Heavy duty belt specially designed for elevator of high capacity and height up to 45 meters.
Belt speed maintained at optimum level to avoid unwanted wear and tear of the belt.
High Quality workmanship and accuracy of international standards.
Trouble free performance and low power consumption.

Standard Bucket Elevator (B.E.) Models

All the below calculations are for bulk density of 750 kg/m3, Options for buckets: Seamless Steel/ Shovel Type/ Food Grade Plastic.

Sr. No. Bucket Elevator Models Pulley Dia (kg) Belt width (kg) Bucket Pitch (kg) Belt Speed (kg) Bucket Capacity (kg) Bucket Capacity (TPH)
1 B.E. – 125 350 125 135 1.37 0.23 5
2 B.E. – 150 450 150 172 1.76 0.56 15
3 B.E. – 200 550 200 195 2.15 1.07 30
4 B.E. – 250 550 250 217 2.15 1.85 50
5 B.E. – 300 650 300 262 2.72 2.44 75
6 B.E. – 350 650 350 292 2.72 4.24 100
7 B.E. – 400 700 400 330 2.75 6.4 150
