Screw Conveyor/ Feeder

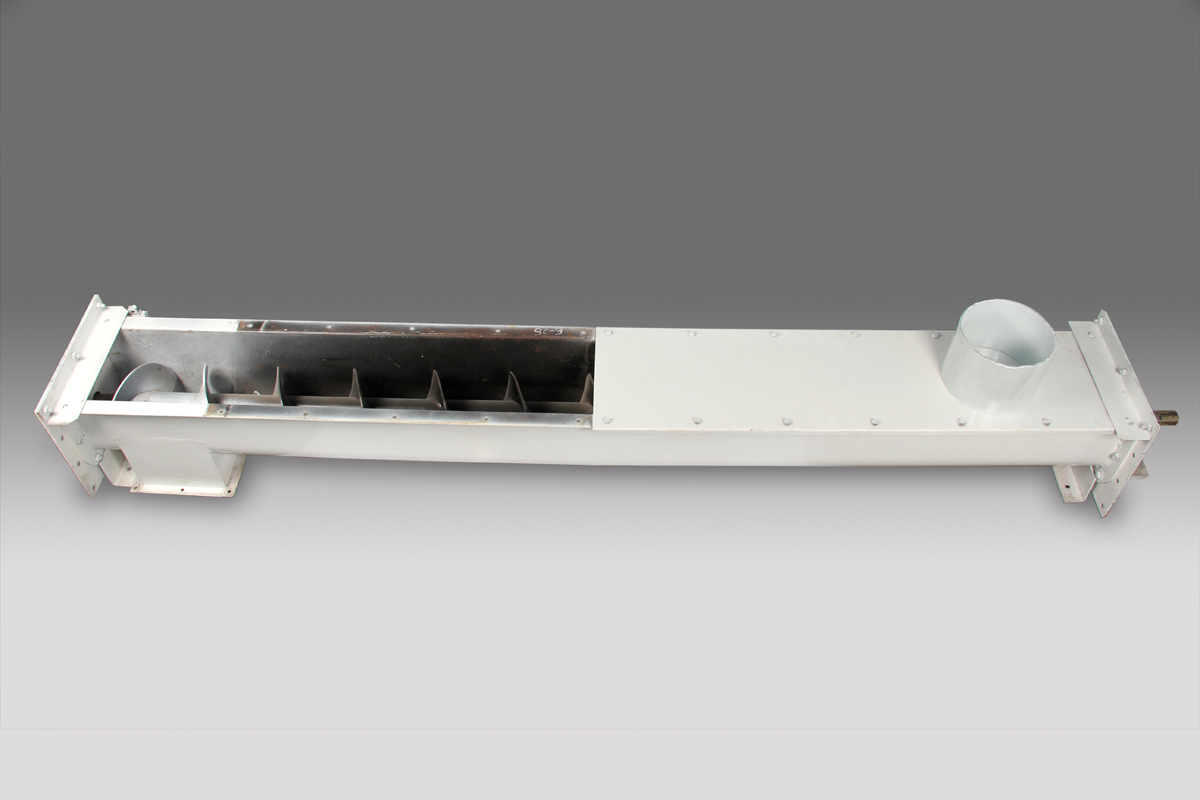

KGSPL screw conveyors offer excellent efficiency and versatility for conveying bulk materials, both free flowing and non-free-flowing with capacity upto 50 TPH.

Specially made for both Indoor and Outdoor Installations
Flexibility in drive arrangement to suite site conditions
Specially designed, strong flights
Screw feeders up to 8 mtrs. Length
Screw conveyors up to 25 to 30 mtrs length
U type trough with top cover
Multiple inlets and outlets can be provided
Years of trouble free operations

Sr. No. Screw Conveyor Models Screw Flight Dia. (mm) Screw Pitch (mm) Revolutions (rpm) Screw Conveyor Capacity (TPH)
1 S.C.-150 150 150 110 5
2 S.C.-250 250 250 118 25
3 S.C.-300 300 300 110 40
