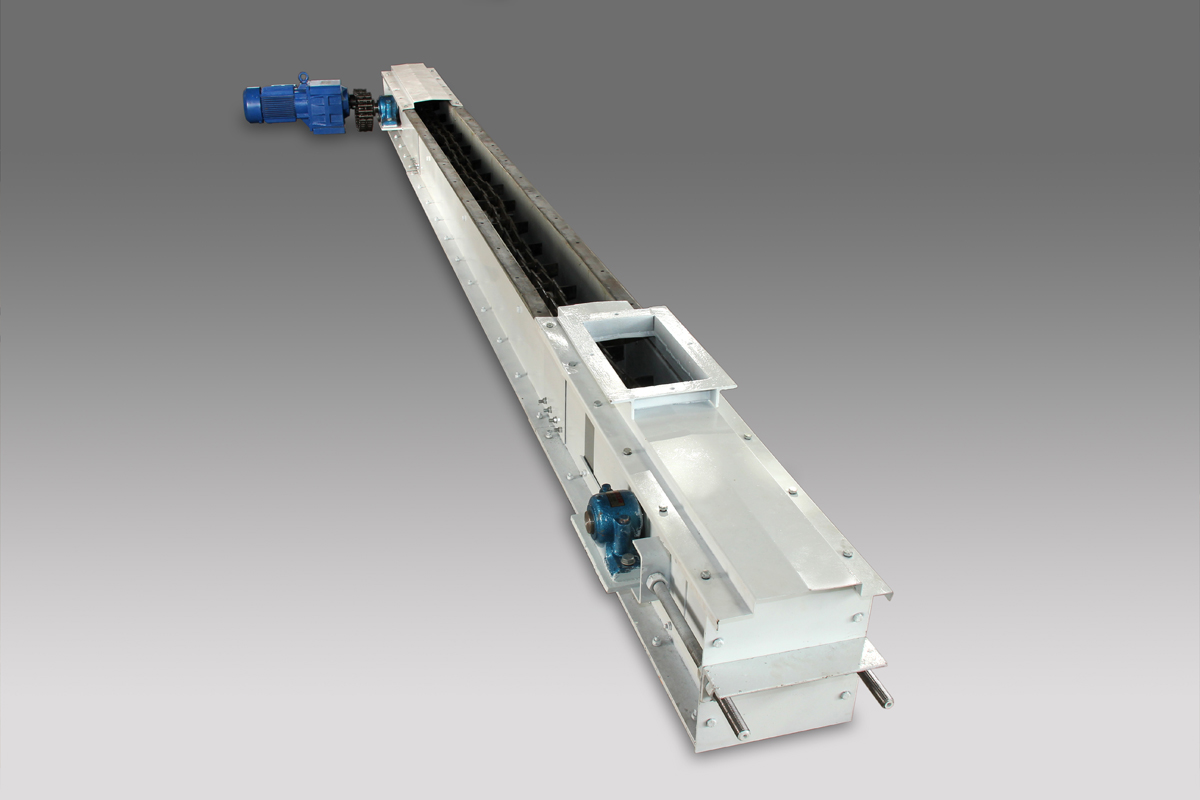

KGSPL chain conveyors are suitable for overhead as well as outdoor installations, for a wide range of applications in grain handling. Totally bolted construction makes our conveyor very easy to erect and has high operational accuracy.
Optimized conveying speed
Specially designed chain of higher strength and tested for breaking load with heat treatment
Bush made of (EN8/EN9) steel.
Chain guide roller with bearings
Rails provided for return chain.
Abrasion Resistant liner of UHMWPE (Ultra High Molecular Weight Poly Ethylene) at the bottom
Leak proof top cover for the conveyor specially designed to drain off rain water
Provision for multiple inlets and outlets
Long Life and trouble free operation
Capacity above 200TPH available on demand
Capacity Based on grain bulk density 720 Kg/m3
|Sr. No.||Chain Conveyor Models||Width of Chain Conveyor Casing||Grain Layer height (mm)||Chain Speed in (M/Sec)||Chain Conveyor capacity in (TPH)|
|1||CC – 150||150||50||0.368||5|
|2||CC – 150||150||125||0.368||15|
|3||CC – 200||200||180||0.368||30|
|4||CC – 250||250||225||0.368||50|
|5||CC – 300||300||270||0.378||75|
|6||CC – 350||350||310||0.378||100|
|7||CC – 400||400||350||0.378||125|
|8||CC – 450||450||370||0.388||150|
